Lima Locomotive & Machine Co.

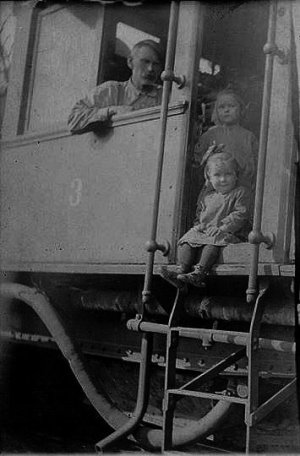

Photo Credit:
Terry Passmore collection
Shop Number 2156 - Built for: Pine Belt Lbr. Co.
{1,595th Lima Built Shay}
Built:
3-30-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.66
 Maximum
Safe Speed:
19.0
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,400
Owners:
Pine Belt Lbr. Co. #3, Fort Towson, OK
Birmingham Rail & Loco. Co. (D), Birmingham, AL
(4-30-1921) W. C. Wood Lbr. Co. #1, Collins, MS
(3-21-1924) Elton Lbr. Co. #3, Belpine, MS
Disposition: (8-1936) Scrapped, boiler salvaged and is for sale
Additional Notes: Converted to wood burner
