Lima Locomotive & Machine Co.

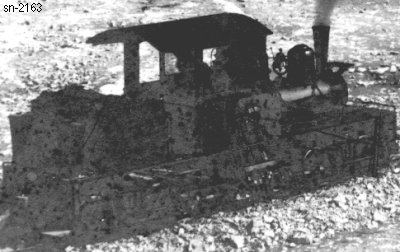

Photo Credit:
Dan Rowe collection
Shop Number 2163 - Built for: A & C Stone & Lime Co.
{1,602nd Lima Built Shay}
Built:
4-8-1909
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.467
Wheel Dia.:
22"
Gauge:
std.
Boiler:
[Style - Dia.]

ST. - 27.5"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
4,542 Lbs.
Factor of
Adhesion:

6.62
Maximum
Safe Speed:

10.6
Fuel Type:
Coal
Fuel Capacity:
0.5 Ton
Water Capacity:
400 Gallons
Empty Weight:
As built
25,700
Owners:
A & C Stone & Lime Co. #1, Greencastle, IN
Mid-West Crushed Stone Quarries Co., Ridgeville, IN
Mid-West Crushed Stone Quarries Co., #1, Greencastle, IN
(1930) Mid-West Rock Products Corp., Greencastle, IN
Disposition: Scrapped
Additional Notes:
