Lima Locomotive & Machine Co.

Photo Credit:

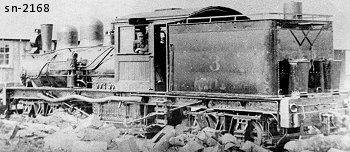

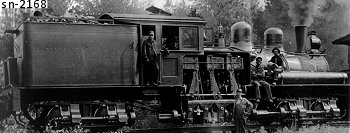

Left: Jack Holst collection - Right: by Diebert from Gill Fuller collection
Shop Number 2168 - Built for: The Cadillac Handle Co.
{1,607th Lima Built Shay}
Built:
5-31-1909
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:Dia.
32"
Gauge:
std.
Boiler:
[Style - Diam.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.80
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
2,400 Gallons
Empty Weight:
As built
83,100
Owners:
The Cadillac Handle Co. #3, Pellston, MI
(c1915) Brookings Tbr. & Lbr. Co., Brookings, OR
(1916) California & Oregon Lbr. Co. Smith River & Northern RY #3 (2nd), Brookings, OR
(by 9-10-1926) Zimmerman, Wells & Brown Co. (D), Portland, OR
(2-28-1927) Deer Island Log. Co. #105, Deer Island, OR
Murphy Timber Co., Yacolt, WA
(5-20-1928) Columbia River Tbr. Co. #105, Greenleaf, WA
Disposition: Scrapped
Additional Notes:
