Lima Machine Works

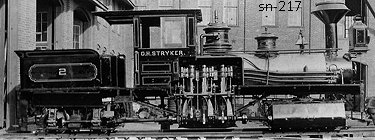

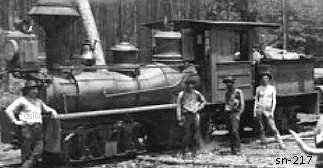

Photo Credit:
Left: East Texas Logging Railroads by Murray Hammond
Right: George R. Kadelak collection
Shop Number 217 - Built for: Angle Lbr. Co.
{183rd Lima Built Shay}
Built:
9-27-1888
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 7x7
Gear Ratio:
2.65
Wheel Dia.:
24"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T.- 30"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
6,586 Lbs.
 Factor of
Adhesion:
5.6
Maximum
Safe Speed:
11.2
Fuel Type:
Coal
Fuel Capacity:
1 Tons
Water Capacity:
680 Gallons
Empty Weight:
As built
29,200
Owners: (Includes new data after 2018 Shay book completed)
Angle Lbr. Co. #2, "G. H. STRYKER", Stryker, TX
Disposition: Scrapped
Additional Notes:
