Lima Locomotive & Machine Co.

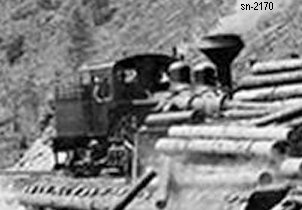

Photo Credit:
by Rollin H. McKay
Shop Number 2170 - Built for: Mann Lbr. Co.
{1,609th Lima Built Shay}
Built:
4-30-1909
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
 Boiler:
[Style - Dia.]
E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,350 Lbs.
 Factor of
Adhesion:
4.67
Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,050 Gallons
Empty Weight:
As built
51,600
Owners:
Mann Lumber Co. #2 (1st), Henderson, MT
(10-18-1920) Baird-Harper Lbr. Co. #3, Warland, MT
(4-1924) Warland Lbr. Co. #3, Warland, MT
(5-17-1927) Washington Machinery & Supply Co. (D), Spokane, WA
Disposition: Scrapped
Additional Notes: Changed to Oil 4-1914
