Lima Locomotive & Machine Co.

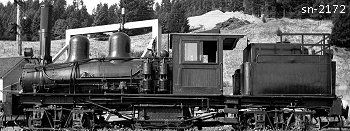

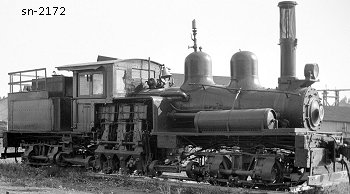

Photo Credit:
Both: by John T. Labbe (9-1953)
Shop Number 2172 - Built for: Gig Harbor Tbr. Co.
{1,611th Lima Built Shay}
Built:
5-3-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.87
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,100
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Gig Harbor Tbr. Co. #1, Gig Harbor, WA
(by 12-1913) Stimson Tbr. Co. Inc. #1, Belfair, WA
(by 1928) Converted to oil burner
(1931) Stimson Lbr. Co. #1 "PEGGY", Gaston, OR
(1950) Retired from service
(11-1-1955) Donated to the City of Portland, Portland,OR
On display at World Forestry Center, Portland, OR
Disposition: displayed @ World Forestry Center, Portland, OR
Additional Notes:Shipped directly to: Smiths Cove Dock, Seattle, WA from Lima.
Converted to Oil burner at some point.
