Lima Machine Works

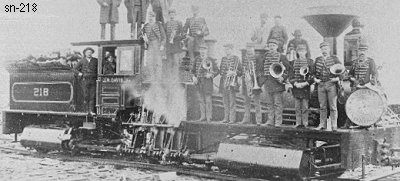

Photo Credit:
Catherine Mess collection
Shop Number 218 - Built for: Phillips Lbr. Co.
{184th Lima Built Shay}
Built:
9-19-1888
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11x10
Gear Ratio:
2.050
Wheel Dia.:
29"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T.- 42"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,396 Lbs.
 Factor of
Adhesion:
4.32
 Maximum
Safe Speed:
16.8
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1140 Gallons
Empty Weight:
As built
52,000
Owners:
Phillips Lbr. Co., Lake Shore & Eastern RR #218 "JOHN R. DAVIS JR", Phillips, WI
(7-8-1889) John R. Davis Lbr. Co., Lake Shore & Eastern RR #218 "JOHN R.DAVIS JR", Phillips, WI
(1907) Fredson Brothers Log. Co.#1 , Shelton, WA
(4-8-1910) Overhauled by Peninsular RY, Shelton, WA
(9-2-1920) Hofius Steel & Equip. Co. (D), Seattle, WA *
(1920) For sale
(1-1-1922) International Lbr. & Mfg. Co., Ethel, WA
(3-1923) W. H. Peters Log. Co., Ethel, WA
(2-24-1925) Hofius Steel & Equip. Co. (D), Seattle, WA *
Disposition: (7-13-1929) Scrapped
Additional Notes: * Owned by Dealer
