Lima Locomotive & Machine Co.

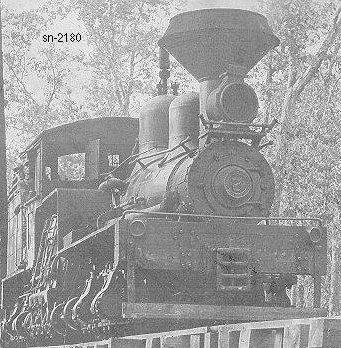

Photo Credit:
San Jacinto County Historical Society
Shop Number 2180 - Built for: The Palmetto Lbr. Co.
{1,619th Lima Built Shay}
Built:
6-21-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,826 Lbs.
Factor of
Adhesion:

4.91
Maximum
Safe Speed:

16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
60,200
Owners:
Palmetto Lbr. Co., Trinity Valley Southern RR #7, Oakhurst, TX
(4-12-1926) Oakhurst Lbr. Co. #4, Oakhurst, TX
Disposition: Scrapped
Additional Notes:
