Lima Locomotive & Machine Co.

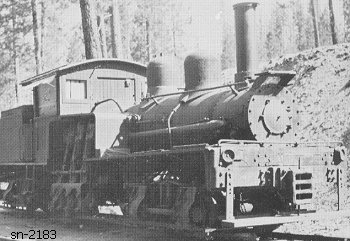

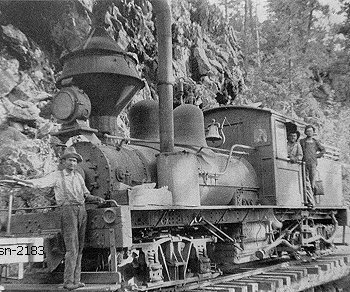

Photo Credit:
Left: Andrew Brandon collection
Right: R. S. Polkinghorn collection
Shop Number 2183 - Built for: Marsh Lbr. Co.
{1,622nd Lima Built Shay}
Built:
6-11-1909
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
15,162 Lbs.
Factor of
Adhesion:

4.10
Maximum
Safe Speed:

10.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
51,200
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Marsh Lbr. Co. #3, Loyalton, CA
(c1913) Clio Lbr. Co., Clio, CA
(c1915) Feather River Lbr. Co. #3, Delleker, CA
(c1917) Massack Tbr. & Lbr. Co. #3, Massack, CA
(8-1-1922) M. J. Scanlon Lbr. Co. #3, Massack, CA
(7-1-1926) For sale
(5-1944) Michigan-California Lbr. Co. #14, Camino, CA
Disposition: (c1948) Scrapped
Additional Notes: Shipped to: Boca, CA
