Lima Locomotive & Machine Co.

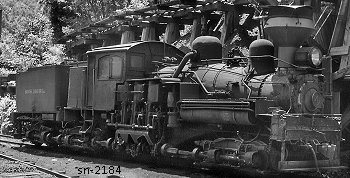

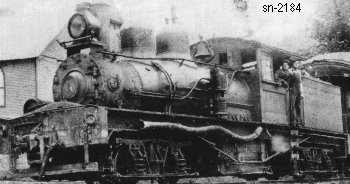

Photo Credit:
Left: W. J. B. Gwinn collection (1910)
Right: by Bill Gordon (8-1960)
Shop Number 2184 - Built for: SeweIl Valley RR
{1,623rd Lima Built Shay}
Built:
6-25-1909
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.529
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
25,820 Lbs.
 Factor of
Adhesion:
4.02
Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
82,400
Owners:
SeweIl Valley RR Co., Sewell Valley RR #1, Meadow Creek, WV
(1916) Meadow River Lbr. Co. #4, Rainelle, WV
(1942) Birmingham Rail & Loco. Co. (D), Birmingham, AL
(8-2-1944) Trego Stone Corp. #4, Skippers, VA
Disposition: (c1952) Scrapped
Additional Notes:
