Lima Locomotive & Machine Co.

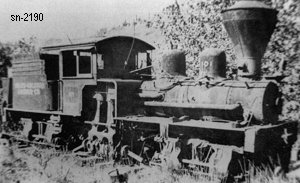

Photo Credit:
Martin E, Hansen collection (early 1920's)
Shop Number 2190 - Built for: Motley Green & Co.
{1,629th Lima Built Shay}
Built:
7-10-1909
Class:
A
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
ST. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
4.64
 Maximum
Safe Speed:
10.3
Fuel Type:
Lignite
(coal)
 Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
39,890
Owners:
Motley Green & Co., New York, NY; For:
(8-26-1909) Dawson Electric Light & Power Co. (Northern Light Power & Coal Co.), #1, Coal Creek, Yukon Territory, CAN
(c1912) Unknown owner, #2, unknown location
(3-1921) Puget Sound Machinery Depot (D), Seattle, WA
(3-1921) Biles-Coleman Lbr. Co. #2 later #101, Omak, WA
(5-8-28) Converted to oil burner
Disposition: (1940) Scrapped at Omak, WA
Additional Notes: Shipped dismantled to Dawson Electric Light & Power Co., Dawson, YT, CAN, arrived 8-26-1909
Converted to a wood burner soon after arriving at Dawson.
(c1912-13) 2190 was not the Shay that went to Alaska-Gastineau Mining Co., that was sn-2300.

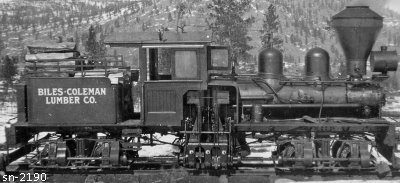

Photo Credit:
Eric L. Johnson collection (c1940)
