Lima Locomotive & Machine Co.

Photo Credit:
Great Smokie Mountains National Park collection (1920's)

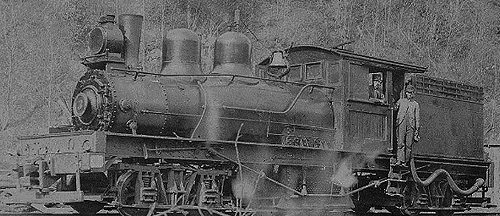

Shop Number 2192 - Built for: Pigeon River Lbr. Co.
{1,631st Lima Built Shay}
Built:
10-11-1909
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.54
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
81,100
Owners:
Pigeon River Lbr. Co., The Lima Southern RY Co. #3, Mt. Sterling, NC
(4-1911) Champion Lbr. Co. #3, Crestmont, NC
Champion Lbr. Co. #3, Sunburst, NC
(c1920) Alarka Lbr. Co. #3, Alarka, NC
Disposition: Scrapped
Additional Notes: (4-9-1924) Lima visit: Renewing frame on 2192 and repairing other damage caused by wreck.
(8-12-1929) Lima visit reported air brake trouble
