Lima Locomotive & Machine Co.

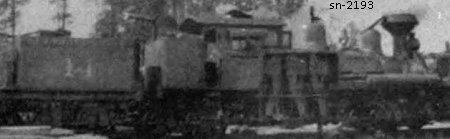

Photo Credit:
Steam Machinery, Feb. 1914 issue
Shop Number 2193 - Built for: J. J. White Lbr. Co.
{1,632nd Lima Built Shay}
Built:
7-14-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.42
Maximum
Safe Speed:
19.0
Fuel Type:
Wood / Coal
 Fuel Capacity:
2.5 Cords
Water Capacity:
3,000 Gallons
Empty Weight:
As built
110,000
Owners:
J. J. White Lbr. Co., Liberty-White RR #14, McComb, MS
(by 1-19-1921) J. J. White Lbr. Co. #14 later #15 (2nd), Columbia, MS
Disposition: Scrapped
Additional Notes:
