Lima Locomotive & Machine Co.

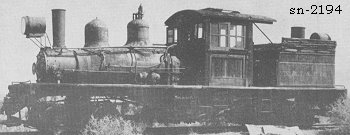

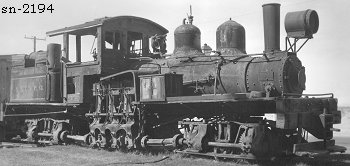

Photo Credit: Left: by R.H. Kindig (4-1949) Right: John Henderson collection (10-1950)

Shop Number 2194	-	Built for: Santa Barbara Tie & Pole Co.
{1,633rd Lima Built Shay}

Built: 7-14-1909	Class: B 24-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 8 x 8
Gear Ratio: 3.071	Wheel Dia.: 26.5"	Gauge: 36"	Boiler: [Style - Dia.] E.W.T. - 33.5"
Boiler Pressure: In Lbs. (PSI) 160	Tractive Effort: 10,680 Lbs.	Factor of Adhesion: 5.59	Maximum Safe Speed: 10.3
Fuel Type: Wood	Fuel Capacity: 1 Cord	Water Capacity: 830 Gallons	Empty Weight: As built 51,000
Owners: (Includes new data after 2018 Shay book completed) Santa Barbara Tie & Pole Co. #1, Hodges, NM Walter A. Zelnicker Supply Co. (D), St. Louis, MO (1917) Little Cottonwood Transportation Co., Inc. #3, Wasatch, UT (7-25-1924) Geo. H. Watson & Co., Wasatch, UT (7-25-1924) For sale Alta Scenic RY #1, Wasatch, UT Pioche Pacific RR (Amalgamated Pioche Mines & Smelters Corp.), #3, Pioche, NV Bristol Silver Mines Co. #3, Pioche, NV (by 1955) Frontier Village (Last Frontier Hotel), Las Vegas, NV Hacienda Hotel & Casino, Boulder City, NV (11-2003) West Side Narrow Gauge RY Preservation, #16, Tuolumne, CA (2004) Brad Milne (railfan), McKenna, WA (2015) Craig Kinnaman (railfan), Olympia WA
Disposition:
Additional Notes: Shipped to: Embudo, NM SLc Survivor List Converted to coal burner
