Lima Locomotive & Machine Co.

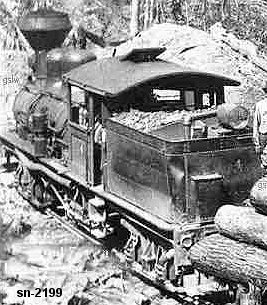

Photo Credit:
David Thomas collection (c1928)
Shop Number 2199 - Built for: Tioga Lbr. Co.
{1,638th Lima Built Shay}
Built:
9-20-1909
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.64
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
83,300
Owners:
Tioga Lbr. Co., Strouds Creek & Muddlety RR #4, Allingdale, WV
(c5-7-1921) Birch Valley Lbr. Co., Strouds Creek & Muddlety RR #4, Tioga, WV
(6-6-1940) Premar Coal Co. Inc. #4, Tunnelton, WV
Disposition: (1950's) Scrapped at West End, WV
Additional Notes:
