Lima Machine Works

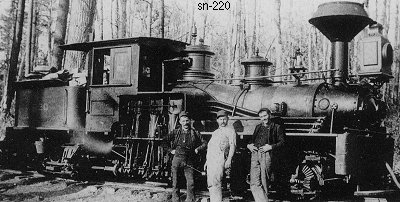

Photo Credit:
Bill Moon collection
Shop Number 220 - Built for: H. W. Sage & Co.
{186th Lima Built Shay}
Built:
10-8-1888
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8x8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
10,205 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
625 Gallons
Empty Weight:
As built
34,000
Owners:
H. W. Sage & Co., Hale, MI
(1901) Dawn Tramway Co., Dawn Tramway #220, Dresden, ON,CAN
W. D. Hofius & Co. (D), Seattle, WA
Puget Sound Mills & Tbr. Co. #2 (1st), Port Crescent, WA
(7-1901) Lenora, Mount Sicker Copper Mining Co., Lenora, Mt. Sicker RY #2, Lenora, BC, CAN
(1908) Leased to: Westholme Lbr. Co. #2, Mt. Sicker Siding, BC, CAN
(1913) Campbell River Lbr. Co. #2, Stag Bay, Hernando Island, BC, CAN
(1913) Wrecked and scrapped
Disposition: (1913) Scrapped
Additional Notes:
