Lima Locomotive & Machine Co.

Photo Credit:
Geroge R. Kadelak collection

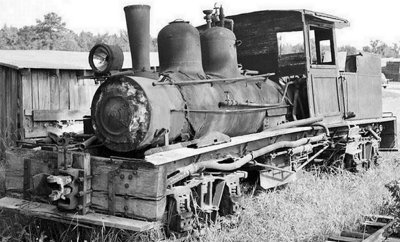

Shop Number 2202 - Built for: Greenleaf-Johnson Lbr. Co.
{1,641st Lima Built Shay}
Built:
7-16-1909
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
28"
Gauge:
42"
 Boiler:
[Style - Dia.]
E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,162 Lbs.
 Factor of
Adhesion:
4.39
 Maximum
Safe Speed:
10.9
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,000 Gallons
Empty Weight:
As built
54,100
Owners:
Greenleaf-Johnson Lbr. Co. #9, Vaughan, NC
(10-13-1921) Montgomery Lbr. Co. #9, Vaughan, NC
(12-12-1921) Leased to: Hollister Lbr. Co. #9, Vaughan, NC
(3-1925) Greenleaf-Johnson Lbr. Co. #9, Vaughan, NC
(5-27-1927) For sale
(11-24-1931) W. M. Ritter Lbr. Co., McClure, VA
Disposition: Scrapped
Additional Notes:
