Lima Locomotive & Machine Co.

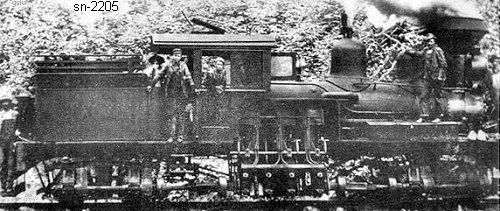

Photo Credit: Green Gold by Doug McGuinn
Shop Number 2205 - Built for: Damascus Lbr. Co.
{1,644th Lima Built Shay}
Built:
8-27-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
36"
 Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.26
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,500
Owners:
Damascus Lbr. Co. #2, Laureldale, VA
(3-16-1923) Hassinger Lbr. Co. White Top RY #2, Konnarock, VA
(11-21-1936) Whiting Lbr. Co., Butler, TN
Disposition: Scrapped
Additional Notes: Shipped to: Laureldale, WV
