Lima Locomotive & Machine Co.

Photo Credit:
Marc Reusser collection

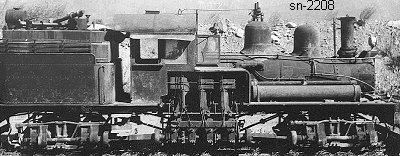

Shop Number 2208 - Built for: Silverton Lbr. Co.
{1,647th Lima Built Shay}
Built:
9-16-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
3.077
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.98
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
68,900
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Silverton Lbr. Co. #2, Mehama, OR
(c1933) Hauser Construction Co. #2, Cascade Locks, OR, used on Bonneville Dam contract
Zidell Steinberg Co. (D), Portland, OR
Disposition: Scrapped
Additional Notes:
