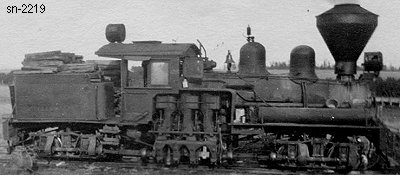

Lima Locomotive & Machine Co.

Photo Credit:
Lawrence Zimmerer collection
Shop Number 2219 - Built for: Moore Log. Co.
{1,658th Lima Built Shay}
Built:
10-22-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.05
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
69,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Moore Log. Co. #1, Wickersham, WA
Deer Park Lbr. Co., Deer Park, WA
(6-17-1926) For sale
(10-28-1929) Pacific Hoist & Derrick Co. #1, Seattle, WA
Disposition: Scrapped
Additional Notes: Shipped to Doran's Spur c/o Wichersnaim Agent
