Lima Locomotive & Machine Co.

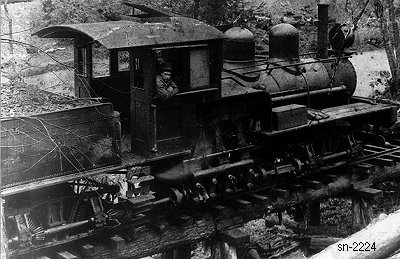

Photo Credit:
from Hagley Museum collection
Shop Number 2224 - Built for: Waggy & Harder Lbr. Co.
{1,663rd Lima Built Shay}
Built:
9-24-1909
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,635 Lbs.
Factor of
Adhesion:

4.79
Maximum
Safe Speed:

10.9
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
850 Gallons
Empty Weight:
As built
49,600
Owners:
Waggy & Harder Lbr. Co. #3, Erbacon, WV
Boggs Stave & Lbr. Co., Wire Bridge, WV
(9-22-1917) Track and Shay changed to Std. gauge.
(by 8-22-1918) [Std.] L. O. Steinbeck Lbr. Co. #1, Plymouth, WV
(by 5-1919) W. M. Ritter Lbr. Co. #2224, Fremont, VA
[36"] W. M. Ritter Lbr. Co. #2224, McClure, VA
(1-16-1935) The McCorkle Lbr. Co., Stonega, VA
(8-8-1943) Coal Processing Corp., Dixiana, VA
Disposition: Scrapped
Additional Notes:
