Lima Locomotive & Machine Co.
Photo Credit:

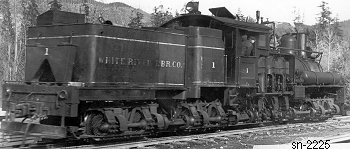

Left: Martin E. Hansen collection

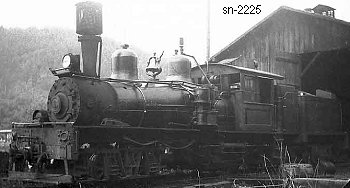

Right: John Henderson collection (3-1-1942)
Shop Number 2225 - Built for: White River Lbr. Co.
{1,664th Lima Built Shay}
Built:
9-22-1909
Class:
C
70-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 15
Gear Ratio:
2.25
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
30,375 Lbs.
 Factor of
Adhesion:
4.71
Maximum
Safe Speed:
19.0
Fuel Type:
Wood / Coal
Fuel Capacity:
2.5 Cords / 5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
112,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
White River Lbr. Co. #1 (2nd), Enumclaw, WA
Disposition: (6-11-1948) Scrapped
Additional Notes: Converted to oil burner
