Lima Locomotive & Machine Co.

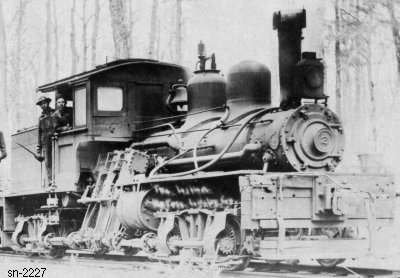

Photo Credit:
Ontonagon MI Historical Society collection
Shop Number 2227 - Built for: Northland Lbr. Co.
{1,666th Lima Built Shay}
Built:
10-1-1909
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.26
Maximum
Safe Speed:
13.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
63,500
Owners:
Northland Lbr. Co. #2, Pori, MI
Spies-Thompson Lbr. Co., Ontonagon, MI
Thompson-Wells Co #2, Ontonagon, MI
(12-15-1927) Alexander & Boyd #2, Ontonagon, MI
(9-17-1928) Bergland Lbr. Co., Bergland, MI
Disposition: (9-13-1929) Scrapped
Additional Notes:
