Lima Locomotive & Machine Co.
Photo Credit:

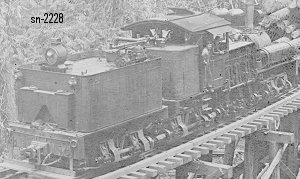

Left: Lima Builder's photo (BP 10-1909) from Loco World Magazine
Right: Steve Shook collection
Shop Number 2228 - Built for: Blackwell Lbr. Co.
{1,667th Lima Built Shay}
Built:
10-12-1909
Class:
C
60-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
5.77
Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 5 Tons
 Water Capacity:
3,000 Gallons
Empty Weight:
As built
106,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Blackwell Lbr. Co., Coeur d'Alene Southern RY #4, Coeur d'Alene, ID
Blackwell Lbr. Co., Coeur d'Alene Southern RY #4, Fernwood, ID
Blackwell Lbr. Co. #4, Emida, ID
Disposition: Scrapped
Additional Notes: Shipped to: Coeur d'Alene, ID
