Lima Locomotive & Machine Co.

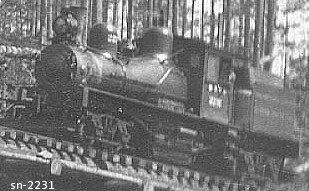

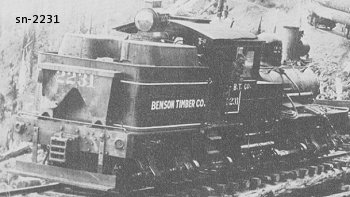

Photo Credit:
Left: Marc Reusser collection - Right: by Dan Weslind
Shop Number 2231 - Built for: Benson Log. & Lumbering Co.
{1,670th Lima Built Shay}
Built:
12-16-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

5.62
Maximum
Safe Speed:

17.1
Fuel Type:
Oil
Fuel Capacity:
800 Gals.
Water Capacity:
1,560 Gallons
Empty Weight:
As built
77,600
Owners:
Hofius Steel & Equip. Co. #2231, Seattle, WA
Benson Log. & Lumbering Co. Clatskanie & Nehalem RR #2231, Clatskanie, OR
(6-1911) Benson Tbr. Co. #2231, Clatskanie, OR
Disposition: Scrapped
Additional Notes: New firebox 8-31-34
