Lima Locomotive & Machine Co.

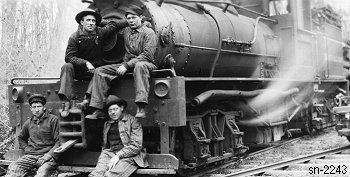

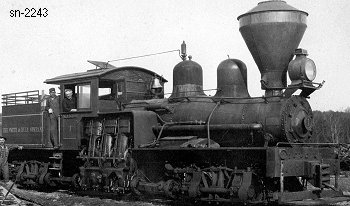

Photo Credit:
Both: Esther White Morse collection from Bill Rosa
Shop Number 2243 - Built for: The Smith & Hull Co.
{1,682nd Lima Built Shay}
Built:
11-27-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,832 Lbs.
 Factor of
Adhesion:
3.96
 Maximum
Safe Speed:
13.9
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,300
Owners:
The Smith & Hull Co., Manitou Limited RR #1 "MANITOU", Crescent (North Manitou Island), MI
(11-27-1909) Leased to: Davenport Bros. Manitou Limited RR #1, Crescent (North Manitou Island), MI
(8-1915) [42"] W. M. Ritter Lbr. Co., Big Sandy & Cumberland RR #1, Hurley, VA
(11-6-1930) For sale
(10-7-1937) W. M. Ritter Lbr. Co. #1, Daisy, KY
Disposition: (2-1-1950) Scrapped at Daisy, KY
Additional Notes: Converted to coal burner
(8-19-1915) Converted to 42" gauge by Lima Locomotive Corp.
