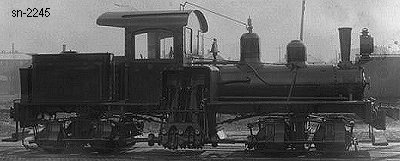

Lima Locomotive & Machine Co.

Photo Credit:
George Kadelak collection (BP 12-1909)
Shop Number 2245 - Built for: W. H. Scott & Son
{1,684th Lima Built Shay}
Built:
12-4-1909
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8.334 Lbs.
 Factor of
Adhesion:
5.31
 Maximum
Safe Speed:
10.1
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
800 Gallons
Empty Weight:
As built
35,500
Owners:
W. H. Scott & Son #18, Falcon, MS
Farrell Loco. Works (D), Brinkley, AR
(8-16-1920) Brown & Hackney, Inc. #1, Pulaski, AR
(3-25-1921) Mark H. Brown Lbr. Co. #18, Transylvania, LA
(2-18-1926) Mark H. Brown Lbr. Co. #1, Lake Providence, LA
Disposition: (11-1-1927) Scrapped
Additional Notes:
