Lima Locomotive & Machine Co.

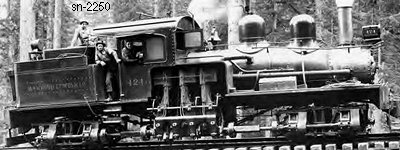

Photo Credit:
University of Washington collection

Shop Number 2250	-	Built for: Hammond Lbr. Co.
{1,689th Lima Built Shay}

Built: 1-4-1910	Class: B 42-2	Trucks: 2	Cylinders: [#-Dia. x Stroke] 3 - 10 x 12
Gear Ratio: 2.05	Wheel Dia.: 29.5"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 42.125"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 16,886 Lbs.	Factor of Adhesion: 4.93	Maximum Safe Speed: 17.1
Fuel Type: Wood	Fuel Capacity: 1.5 Cords	Water Capacity: 1,560 Gallons	Empty Weight: As built 68,000
Owners: Hofius Steel & Equip. Co. (D), Seattle, WA Hammond Lbr. Co. #4, Carrolls, WA Hammond Lbr. Co. #4, Oak Point, WA (1924) Hammond Lbr. Co. #424, Kelso, WA (1-10-1928) Hammond-Tillamook Lbr. Co. #4, Garibaldi, OR (5-14-1928) Hammond-Tillamook Lbr. Co. #4, Mohler, OR Hammond-Tillamook Lbr. Co. #4, Foss, OR
Disposition: Scrapped
Additional Notes: Shipped to Klama, WA
