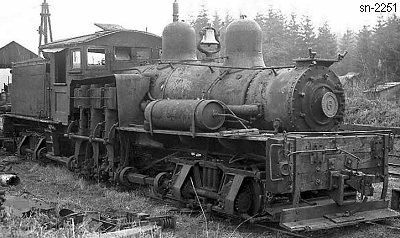

Lima Locomotive & Machine Co.

Photo Credit:
Martin E. Hansen collection
Shop Number 2251 - Built for: English Lbr. Co.
{1,690th Lima Built Shay}
Built:
1-6-1910
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.26
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood / Coal
Fuel Capacity:
2 Cords / 3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
100,300
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Hamilton Log. Co. (English Lbr. Co.) #6, Hamilton, WA
English Lbr. Co. #6, Conway, WA
Disposition: (by 2-11-42) Scrapped
Additional Notes: Hamilton Log. Co. owned by English Lbr. Co
