Lima Locomotive & Machine Co.

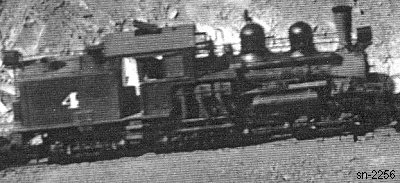

Photo Credit:
Peblo Morga collection
Shop Number 2256 - Built for: Braden Copper Co.
{1,695th Lima Built Shay}
Built:
12-29-1909
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
30"
Boiler:
[Style - Dia.]
E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.82
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,560 Gallons
Empty Weight:
As built
64,400
Owners:
Braden Copper Co. #4, Rancagua, Chile
Disposition: Scrapped
Additional Notes: Shipped to: Valparaiso, Chile
