Lima Locomotive & Machine Co.

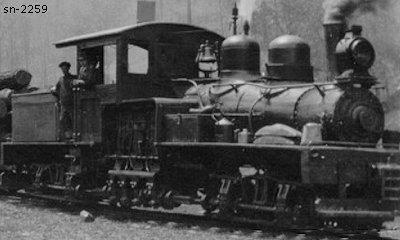

Photo Credit: WV. University at Morgantown W.V. collection
Shop Number 2259 - Built for: Holbrook, Cabot & Rollins Corp.
{1,698th Lima Built Shay}
Built:
12-21-1909
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,680 Lbs.
Factor of
Adhesion:

5.18
Maximum
Safe Speed:

10.3
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
45,400
Owners: (Includes new data after 2018 Shay book completed)
Holbrook, Cabot & Rollins Corp. #3, (Brooklyn Navy Yard), New York City, NY
Cherry River Extract Co., Palmer, WV
(12-30-1918) Berry & Waggy #1, Erbacon, WV
(c3-1923) Moon Lbr. Co., Curtis, WV
(1923) Camp Run Lbr. Co. #3, Camp Run, WV
(6-7-1928) Morrison, Gross & Co. #3, Wallman, MD
(8-5-1935 ) For sale
Disposition: Scrapped
Additional Notes: Shipped to Brookfield Junction, CT
