Lima Machine Works

Photo Credit:
George Kadelak collection (BP 11-1888)

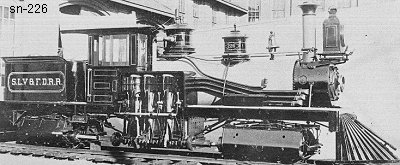

Shop Number 226 - Built for: Salt Lake and Fort Douglas RY
{192nd Lima Built Shay}
Built:
11-22-1888
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
 Wheel Dia.:
28"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,179 Lbs.
 Factor of
Adhesion:
4.27
Maximum
Safe Speed:
16.3
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
44,000
Owners:
Salt Lake Valley and Fort Douglas RY #226, Salt Lake City, UT
(1889) Salt Lake and Fort Douglas RY #7, Salt Lake City, UT
(4-8-1890) Utah Central RY Co., Utah Central RY #7, Salt Lake City, UT
(1893) Oregon Lbr. Co. #1, Baker, OR
(3-31-1920) McKim & Co. (D), Baker, OR *
Disposition: Scrapped
Additional Notes: wrecked ?1/29/1889 (?about six weeks after delivery) and nearly destroyed, rebuilt (with D&RG assistance) and returned to service in mid-1889, as SL&FtD road #7
* Owned by Dealer
