Lima Locomotive & Machine Co.

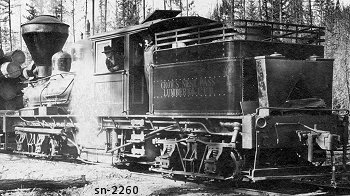

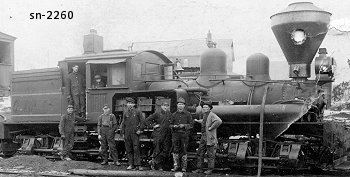

Photo Credit:
Both: James Matthews collection
Shop Number 2260 - Built for: Crows Nest Pass Lbr. Co. Ltd.
{1,699th Lima Built Shay}
Built:
2-21-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
5.25
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood / Coal
 Fuel Capacity:
1.5 Cords / 1.75 Tons
 Water Capacity:
1,200 Gallons
Empty Weight:
As built
65,000
Owners: (Includes new data after 2018 Shay book completed)
Hofius Steel & Equip. Co. (D), Seattle, WA
Crows Nest Pass Lbr. Co, Ltd. #1, Wardner (Crows Nest Pass), BC, CAN
Disposition: (1930) Scrapped
Additional Notes:
