Lima Locomotive & Machine Co. s

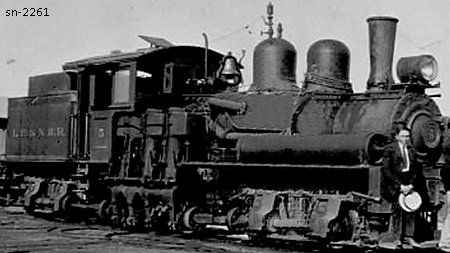

Photo Credit:
Donald B. Straub collection (c1923)
Shop Number 2261 - Built for: Mellen Lbr. Co.
{1,700th Lima Built Shay}
Built:
12-16-1909
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
Tractive Effort:
22,563 Lbs.
Factor of
Adhesion:

4.60
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
82,600
Owners: (Includes new data after 2018 Shay book completed)
Mellen Lbr. Co., Glidden & Southwestern #3, Glidden, WI
Menominee Indian Mills, Menominee Indian RR #3, Neopit, WI
(7-25-1922) Bissell Lbr. Co. #3 (1st), Ladysmith, WI
(2-8-1923) Zimmerman, Wells & Brown Co. (D), Portland, OR
(c1923) Longview, Portland and Northern RR #5, Gardiner, OR
(by 4-14-1926) Long-Bell Lbr. Co. #5 later #600, Ryderwood, WA
(8-23-1947) For sale through Washington Machinery and Storage Co. (D)
Disposition: Scrapped
Additional Notes:
