Lima Locomotive & Machine Co.

Photo Credit:
The Pacific Lumber Co. collection

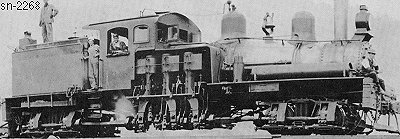

Shop Number 2268 - Built for: The Pacific Lbr. Co.
{1,707th Lima Built Shay}
Built:
2-24-1910
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.29
 Maximum
Safe Speed:
19.4
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
2,000 Gallons
Empty Weight:
As built
106,100
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
The Pacific Lbr. Co. #28, Scotia, CA
(c1921) Pelican Bay Lbr. Co. #28, Kirk, OR
(1947) Pelican Pine Mfg. Co., Pelican City, OR
Disposition: (c1947) Scrapped at Bly, OR
Additional Notes:
