Lima Locomotive & Machine Co.

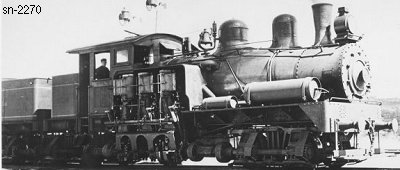

Photo Credit:
John L Buckland
Shop Number 2270 - Built for: Commonwealth Oil Corp., Ltd
{1,709th Lima Built Shay}
Built:
4-19-1910
Class:
C
90-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 15
Gear Ratio:
2.05
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 58.5"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
40,407 Lbs.
 Factor of
Adhesion:
4.75
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,500 Gallons
Empty Weight:
As built
153,913
Owners:
Gibson, Battle & Co. (D), Sydney, Australia
Commonwealth Oil Corp., Ltd., Wolgan Valley RY #4, Newnes, New South Wales, Australia
(1933) Abandoned
Disposition: (1956) Scrapped
Additional Notes: Shipped to Jeffrey Mfg. Co., NYC, NY
Tank was not furnished on this engine
