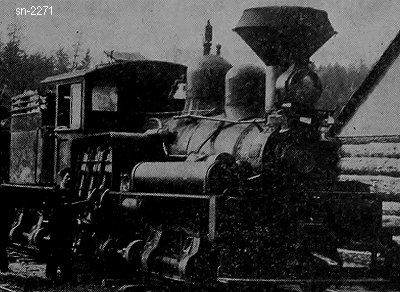

Lima Locomotive & Machine Co.

Photo Credit:
1911 issue Canadian Lumberman And Woodworkers
Shop Number 2271 - Built for: White Pine Lbr. Co.
{1,710th Lima Built Shay}
Built:
1-10-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
4.79
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
57,600
Owners:
White Pine Lbr. Co., Georgian Bay Northern RR, Webbwood, Ont., CAN
White Pine Lbr. Co., Menominee, MI
P. C. Fuller Co., Watersmeet, MI
(7-29-1920) Norton Lbr. Co., P. C. Fuller Co. #1, Ontonagon, MI
(10-17-1924) Flanigan & Newkirk Lbr. Co. #1, Ontonagon, MI
(7-31-1927 ) For sale
Disposition: Scrapped
Additional Notes: Converted to coal burner
