Lima Locomotive & Machine Co.

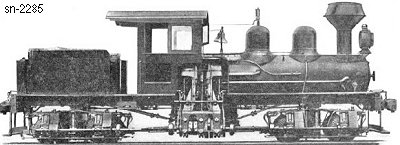

Photo Credit:
The Locomotive World Vol 4 No. 1 May 1911
Shop Number 2285 - Built for: Causey Lbr. Co.
{1,724th Lima Built Shay}
Built:
3-14-1910
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.17
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
720 Gallons
Empty Weight:
As built
36,000
Owners:
Causey Lbr. Co. #1, Causey, FL
R. R. Petrey, Wilma, FL
Irwinton Lbr. Co., Irwinton RY, Irwinton, GA
A. S. Bacon & Sons, Ellabell, GA
Southern Iron & Equip. Co. (D) #1231, Atlanta, GA
(1-1918) Deal Lbr. Co. #3, Buhl, AL
(3-10-1920) A. E. Bell Co. #3, Lois Springs, AL
Birmingham Rail & Loco. Co. (D) #1558, Birmingham, AL
(12-13-1924) Will E. Batty Lbr. Co. Inc., Camden [Rock West], AL
(6-1-1926) Camden Hardwood Co. Inc. #1, Camden, AL
Disposition: Scrapped
Additional Notes: (1-1925) Has trucks from sn-953, which was scrapped
