Lima Locomotive & Machine Co.

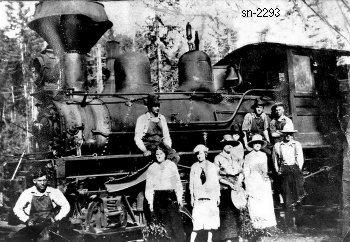

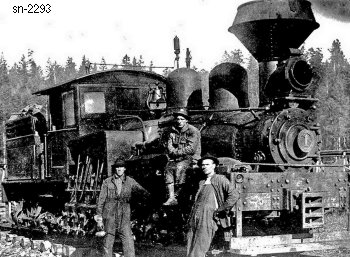

Photo Credit:
Both: by Curtis Irish
Shop Number 2293 - Built for: Chittenden Log. Co.
{1,732nd Lima Built Shay}
Built:
3-10-1910
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 10
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 35.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,350 Lbs.
Factor of
Adhesion:

4.40
Maximum
Safe Speed:

10.3
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
850 Gallons
Empty Weight:
As built
49,100
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Chittenden Log. Co. #1, Lake, WA
Mack Log. Co., Redondo, WA
(c1918) *Mohawk Lbr. Co. #1, Mohawk, OR
Disposition: Scrapped
Additional Notes:
*Possible DBA: Auld Brothers Lbr. Co., Donna OR
