Lima Machine Works

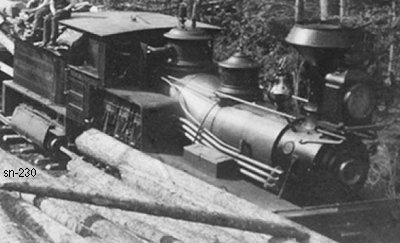

Photo Credit:
by unknown (1890)
Shop Number 230 - Built for: C. N. Stevens & Co..
{196th Lima Built Shay}
Built:
2-25-1889
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T.- 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
12,508 Lbs.
 Factor of
Adhesion:
4.50
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
44,000
Owners:
C. H. Stevens & Co., Moose River RR #1 (1st) "GENERAL HARRISON", St. Johnsbury, VT
(6-29-1897) Granby Lbr. Co. #1, St. Johnsbury, VT
(1904) Victory Lbr. Co., Victory, VT
(1907) Johnson Lbr. Co., Gordon Pond RR #1 (1st) "GENERAL HARRISON", Johnson, NH
Disposition: (1911) Scrapped at Johnson, NH
Additional Notes: "GENERAL HARRISON" name appears on 1890 photo at Moose River RR
