Lima Locomotive & Machine Co.

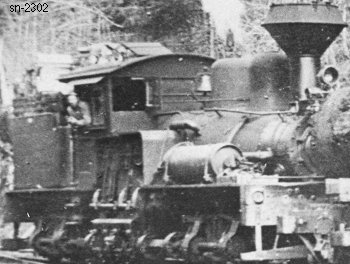

Photo Credit:
Jack Holst collection from Bruce Fowler
Shop Number 2302 - Built for: Simpson Lbr. Co.
{1,741st Lima Built Shay}
Built:
3-31-1910
Class:
B
42-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

E.W.T. - 42.125"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.88
Maximum
Safe Speed:

17.1
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,560 Gallons
Empty Weight:
As built
67,200
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Simpson Lbr. Co. #2 (1st), Empire, OR
(c1913) McDonald & Vaughan Co. #2, Marshfield, OR
North Bend Mill & Lbr. Co. #2 (1st), North Bend, OR
(1916) Buehner Lbr. Co. #2, Allegany, OR
(4-1-1924) The Stout Lbr. Co. of Oregon #2, North Bend, OR
Disposition: Scrapped
Additional Notes: Shipped to: San Francisco, CA
