Lima Locomotive & Machine Co.

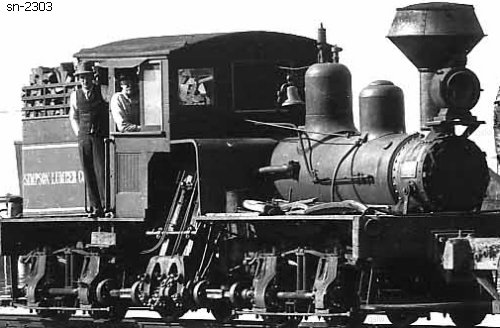

Photo Credit:
by Clark Kinsey
Shop Number 2303 - Built for: Simpson Lbr. Co.
{1,742nd Lima Built Shay}
Built:
3-15-1910
Class:
A
18-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
ST. - 31.5"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
8,334 Lbs.
 Factor of
Adhesion:
5.09
 Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
720 Gallons
Empty Weight:
As built
35,300
Owners:
Norman B. Livermore & Co. (D), San Francisco, CA
Simpson Lbr. Co. #3 (1st), Empire, OR
North Bend Mill & Lbr. Co. #3, North Bend, OR
(1916) Buehner Lbr. Co. #3, Allegany, OR
(c1924) The Stout Lbr. Co. of Oregon #3, North Bend, OR
Disposition: Scrapped
Additional Notes: Shipped to: San Francisco, CA
