Lima Locomotive & Machine Co.

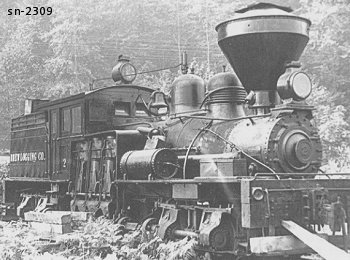

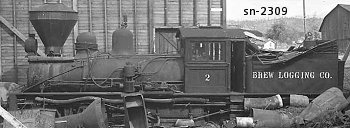

Photo Credit:
Both: Thomas Lawson, Jr. collection
Shop Number 2309 - Built for: T. M. Ring Log. Co.
{1,748th Lima Built Shay}
Built:
5-20-1910
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.46
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,750 Gallons
Empty Weight:
As built
82,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
T. M. Ring Log. Co. #2, Monroe, WA
Brew Log. Co. #2, Kerriston, WA
Disposition: (1952) Scrapped at Puyallup, WA
Additional Notes: Shipped to: Seattle, WA
