Lima Machine Works

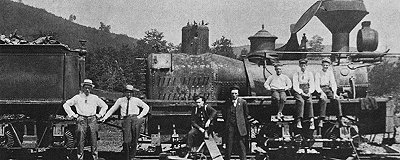

Photo Credit:
Bill Reddy collection
Shop Number 231 - Built for: Benjamin F. Hazelton
{197th Lima Built Shay}
Built:
2-1-1889
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10x10
Gear Ratio:
2.050
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
12,508 Lbs.
Factor of
Adhesion:

4.73
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,038 Gallons
Empty Weight:
As built
46,000
Owners:
Benjamin F. Hazelton #3, Hazelton Mills, PA
(1892) Benjamin F. Hazelton , Mt. Jewett & Smethport RR #3, Hazelhurst, PA
(1892) Cartwright Lbr. Co., Glen Hazel, PA
(11-21-1894) Hall & Kaul Lbr. Co., Glen Hazel, PA
(1895) W. S. Weed & Co., #231, Glen Hazel, PA
(1901) Day Chemical Co. #231, Valley RR, Westline, PA
Disposition: (1-24-1919) Scrapped
Additional Notes: Note: Hall & Kaul Lumber Co. became Kaul & Hall Lumber Co. in 1899
