Lima Locomotive & Machine Co.

Photo Credit:
by M. B. Cooke

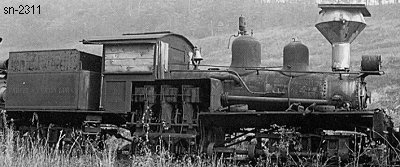

Shop Number 2311 - Built for: Pardee & Curtin Lbr. Co.
{1,750th Lima Built Shay}
Built:
4-22-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
17,659 Lbs.
Factor of
Adhesion:

4.49
Maximum
Safe Speed:

13.6
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
63,300
Owners:
Pardee & Curtin Lbr. Co., Cherry & Hominy RR #9, Curtin, WV
(1927) Pardee & Curtin Lbr. Co. #20, Bergoo, WV
Disposition: (c1950) Scrapped at Bergoo, WV
Additional Notes:
