Lima Locomotive & Machine Co.

Photo Credit:
C. W. Hardesty collection

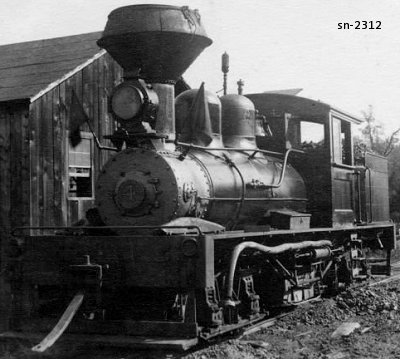

Shop Number 2312 - Built for: R. Chaffey
{1,751st Lima Built Shay}
Built:
4-28-1910
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
29"
Gauge:
42"
Boiler:
[Style - Dia.]

E.W.T. - 37.25"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
14,639 Lbs.
Factor of
Adhesion:

4.44
Maximum
Safe Speed:

11.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
51,200
Owners:
R. Chaffey, #4, William, WV
(1913) [Std.] Ruthbell Lbr. Co. Albright, WV
(c1916) Calflisch Lbr. Co. #4, Albright, WV
(1924) Leased to: Kendall Lbr. Co. #4, Albright, WV
(8-27-1936) West Virginia Mine Supply Co. (D), Clarksburg, WV
(8-27-1936) For sale
Disposition: Scrapped
Additional Notes: (3-1-1913) Converted to standard gauge and repaired at Lima Locomotive Works, Lima, OH
