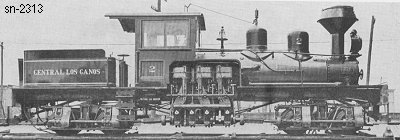

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (5-1910)
Shop Number 2313 - Built for: Central Los Canos
{1,752nd Lima Built Shay}
Built:
5-19-1910
Class:
B
24-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 33.5"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
10,292 Lbs.
Factor of
Adhesion:

5.69
Maximum
Safe Speed:

10.7
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
830 Gallons
Empty Weight:
As built
48,385
Owners:
Central Los Canos #2, Arecibo, U. S. Territory of Puerto Rico
(10-18-1923) [Meter] Plazuela Sugar Co., San Juan, U. S. Territory of Puerto Rico
Disposition: Scrapped
Additional Notes: Was shipped as 26 & 36 gauge
