Lima Locomotive & Machine Co.

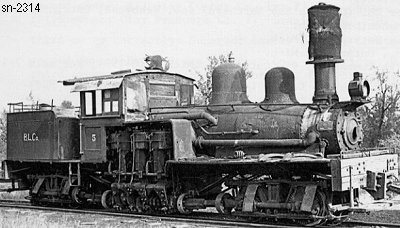

Photo Credit:
by C. W. Witbeck (c1942)
Shop Number 2314 - Built for: B. E. Brister Sawmill Co.
{1,753rd Lima Built Shay}
Built:
4-19-1910
Class:
B
36-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29"
Gauge:
36"
Boiler:
[Style - Dia.]

E.W.T. - 39.375"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
14,315 Lbs.
Factor of
Adhesion:

5.24
Maximum
Safe Speed:

16.8
Fuel Type:
Wood
Fuel Capacity:
1.5 Cords
Water Capacity:
1,200 Gallons
Empty Weight:
As built
62,000
Owners:
Woodward, Wight & Co. (D), New Orleans, LA
B.E. Brister Saw Mill Co., Bogue Chitto, Liberty & Southwestern RR #5, Bogue Chitto, MS
(by 4-13-1921) Central Lbr. Co. #5, Lucien, MS
(by 4-18-1924) Central Lbr. Co. #5, Quentin, MS
(12-1941) Abandoned and to be cut up for scrap
Disposition: (after 6-1944) Scrapped
Additional Notes:
