Lima Locomotive & Machine Co.

Photo Credit:
Clevis & Debbie Jones collection

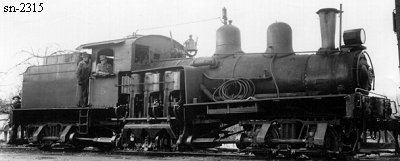

Shop Number 2315 - Built for: Clear Lake Lbr. Co.
{1,754th Lima Built Shay}
Built:
5-2-1910
Class:
B
60-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.211
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 46.375"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
23,868 Lbs.
 Factor of
Adhesion:
5.33
 Maximum
Safe Speed:
19.4
Fuel Type:
Coal
Fuel Capacity:
3.75 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
101,800
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Clear Lake Lbr. Co. #5, Clear Lake, WA
(1-18-1927) For sale
(9-24-1928) Skagit Log. Co. #5, Clear Lake, WA
Puget Sound Pulp & Tbr. Co. #5, Clear Lake, WA
(6-16-1945) Engine in storage at Clear Lake, WA
Disposition: (1940's) Scrapped
Additional Notes:
