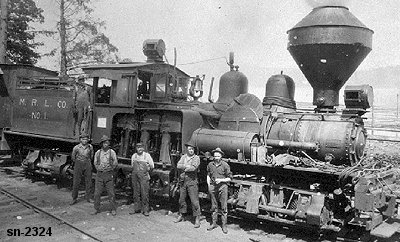

Lima Locomotive & Machine Co.

Photo Credit:
by Unknown
Shop Number 2324 - Built for: Newport Tbr. Co.
{1,763rd Lima Built Shay}
Built:
6-1-1910
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 44.25"
Boiler Pressure:
In Lbs. (PSI)
200
 Tractive Effort:
22,563 Lbs.
 Factor of
Adhesion:
4.52
 Maximum
Safe Speed:
17.2
Fuel Type:
Wood / Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
 Water Capacity:
1,750 Gallons
Empty Weight:
As built
84,000
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA
Newport Tbr. Co. #1, Newport, BC, CAN
(3-4-1914) Newport Tbr. Co. #1, Squamish, BC, CAN (town name changed)
Merrill-Ring & Wilson, Duncan Bay, BC, CAN
(by 8-1925) Merrill-Ring & Moore Co., Duncan Bay, BC, CAN
(8-16-1927) Merrill & Ring Lbr. Co. Ltd. #1, Squamish, BC, CAN
(5-28-1942) Comox Log. & RY Co., Ltd., Ladysmith, BC, CAN; (For parts)
Disposition: (1945) Parted out, few parts remain
Additional Notes: Shipped to: Vancouver, BC, CAN

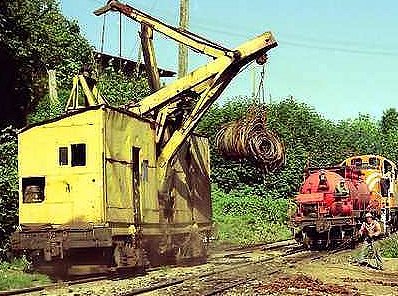

(1945) scrapped - frame & trucks converted into self-powered log dumper
